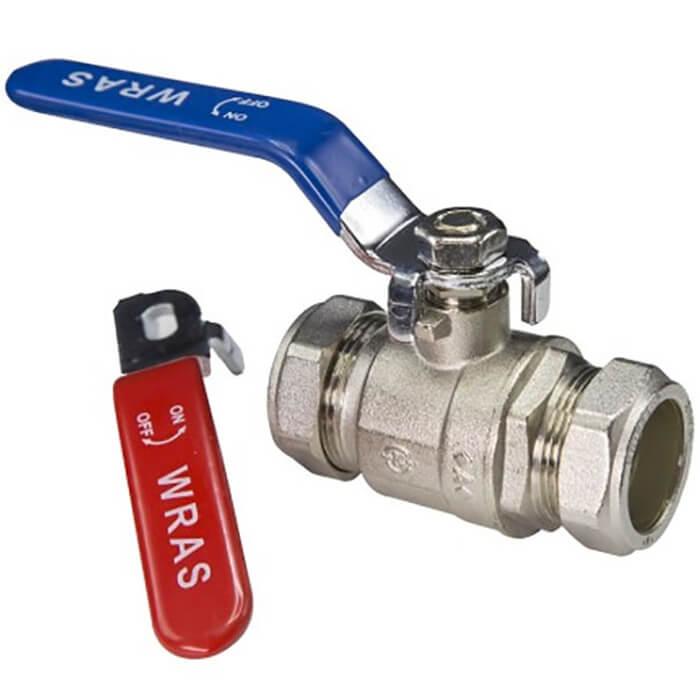

Get the piping projects completed to potential with the use of the right fittings, such as the Masterflow Compression Full Bore Lever Ball Valve. This is a full bore ball valve, which means that the flow area of the valve is equal to the diameter of its pipe connection. It has been manufactured from yellow brass material to ensure maximum durability and performance. The product is marked for full traceability with Blue and red handles for identification of hot and cold lever and complies with relevant standards. In addition, the ball valve has a maximum working pressure of 25 bar and a maximum working temperature of 110 degrees C.
- Full bore lever ball valve
- Manufactured using high quality yellow brass material
- Blue and red handle
- Ideal for heating and hot and cold water applications
- Marked for full traceability
- Compliant with relevant standards
- Maximum working pressure : 25bar
- For technical dimensions please refer technical image
- Maximum Working temperature : 110oC
- Refer technical diagram for complete technical dimensions.
