Product Description

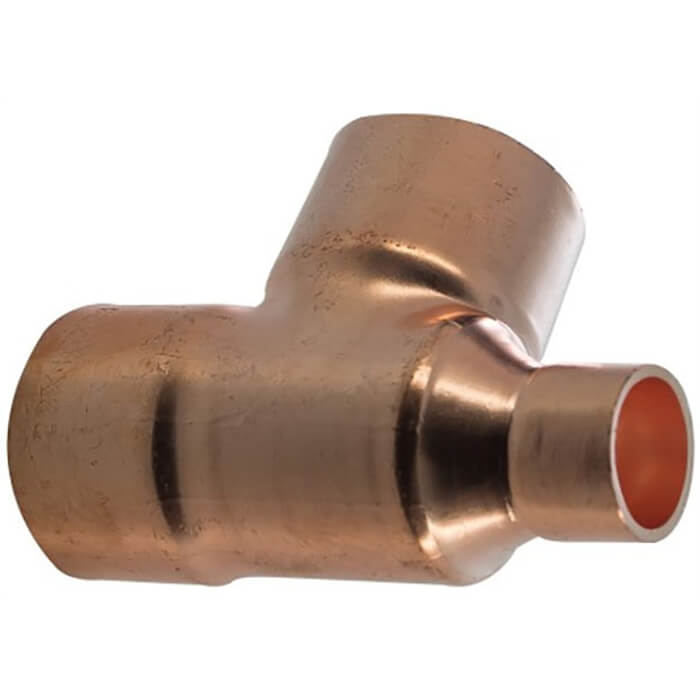

Masterflow’s range of copper tube fittings is designed for use with copper tubes. The reduced end tee is marked for full traceability and manufactured from high quality material to ensure reliability and performance. Suitable for gas, hot and cold drinking water, heating and chilled water systems, it is designed for connecting copper tubes in confined spaces. The product features a WRAS approved design.
- Manufacturing Code : MEF20221522
- Size : 22mm x 15mm x 22mm
- Ideal for confined spaces
- Designed for solder and brazing applications
- Material: Copper
- WRAS Approved
- Marked for full traceability
- Manufactured from high quality copper material in accordance with EN1254-2
- Compliant with relevant British standards EN1254 / BS864
- Suitable for connecting copper tubes in accordance with EN1057
- Suitable for hot and cold drinking water, sanitary water, heating and chilled water system, compressed air and gas
+ Delivery & Returns
- Operating parameters solder 6 - 54mm
- Using tin silver 95/5 percent
- 25 bar at 0 deg.C to 30 deg.C
- 25 bar at 65 deg.C
- 19 bar at 95 deg.C
- 16 bar at 110 deg.C
- Using tin lead 50/50 percent or 60/40 percent
- 16 bar at 0 deg.C to 30 deg.C
- Operating parameter brazed 15mm
- 35.1 bar at -20 deg.C to 110 deg.C
- 29.8 bar at 150 deg.C
Specification
- Size:
- 22mm x 15mm x 22mm
- Material:
- Copper
- Approval:
- WRAS
- Standard:
- EN1254, BS864, EN1057, EN1254-2
