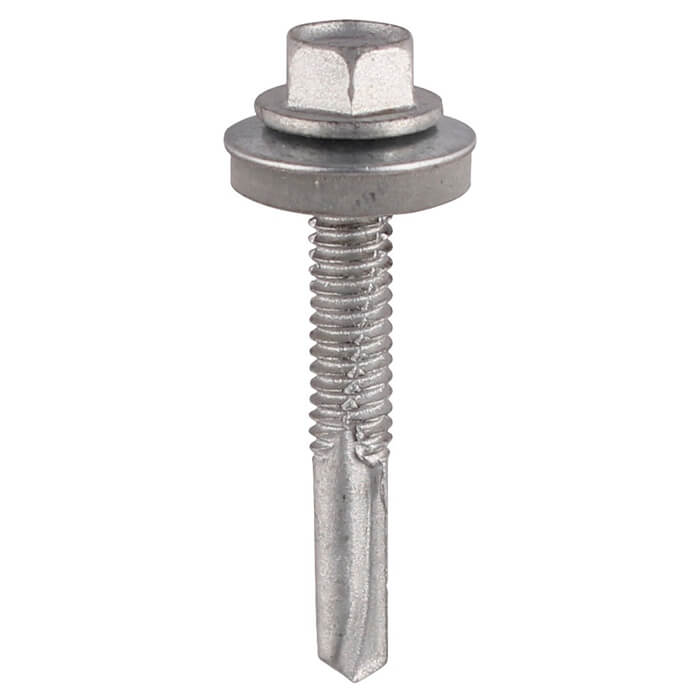

Product Description
Timco’s range of hex head self-drilling screws is available in a variety of sizes and finishes. They have coarse threads for use in steel, without the need to pre-drill a hole. The screw is manufactured from high-grade steel, which has been heat-treated for strength and durability. These screws have an EPDM washer on the underside of the head to prevent water ingress. They are suitable for drilling into metals without the need to pre-drill a hole. It is available as TIMbags, in a pack quantity of 100pcs.
- Timco Hex No.5 Self Drilling Screw W16 Bag
- Hex Head with EPDM washer to prevent water ingress
- Coarse self-tapping thread with tapered shank
- For drilling into metals without the need for pre-drilling
- Used for attaching metal to heavy gauge steel (Max. 12mm) without the need to pre-drill a hole
+ Delivery & Returns
Specification
- Size mm
- 5.5 x 38
- FW Ø mm
- 12
- EPDM Washer mm
- 16
- Effective Thread L mm
- 16
- Finish Exterior
- Silver Organic
- Head Type
- Hex
- Thread Type
- Metric with V Flutes & Torque Relieving Slash
- Point Type
- Self-Drilling No.5
- Corrosion Rating 1-5
- 3 - Urban & industrial areas with a low salt atmosphere
- Material
- Case & Core Hardened Carbon Steel
- Salt Spray Resistance Hrs Tested to BS EN 9227
- 1000
- Substrates
- Steel
- MOQ
- 1
- MOQ Increment
- 1
- Packs per Carton
- 5
- MDT mm
- 12
- Approval
- BS EN 10666 DIN 7504
- Gauge :
- 5.5mm
- Pack Type :
- TIMbag
- Pack Qty :
- 100Pcs
- Washer Size :
- 16mm
- Type :
- Heavy Section
- Length :
- 38mm
