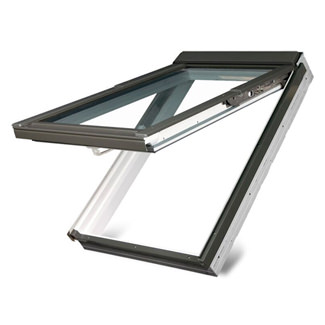

Name: Fakro Manual Top Hung FPW P2-Safety Double Glazed White Acrylic Roof Window
Brand: Fakro
SKU: BW-46874
Price: 425.99 GBP
Availability: InStock

Product Description

Fakro Manual Top Hung FPW P2-Safety Double Glazed White Acrylic Roof Window

Available in different sizes
Prices - Web Exclusive

Top-hung and pivot windows come with two independent opening mechanisms

The sash can be opened outwards from the top and via the centre pivot

An innovatory hardware system guarantees complete sash stability in both opening functions

The opening method can be switched using a preSelect sliding switch placed in the side part of the frame

which is accessible after opening the window

Windows turn through 180 degrees to clean the outer pane within the room.

Suitable for pitches from 15Deg - 55Deg or non-standard option for opening from 55Deg - 85Deg

Finish
White Acrylic
High-quality close-grain vacuum-impregnated redwood pine guaranteed to be knot-free
Finished with white acrylic paint
V40P automatic air vent to prevent unnecessary heat loss

P2 - Safety Double Glaze
Single chamber glazing
Laminated and anti-burglary class P2A according to standard EN 356
Increased resistance against breakage
It consists of the external toughened pane with an easy maintenance layer
The warm TGI spacer and inner pane have two 3mm thick sheets of glass with a 0.76mm layer of PVB plastic membrane between them
The glazing cavity is filled with inert gas- argon
On the inner side of the laminated glass, it has a low emission coating which reduces penetration of UV rays by up to 99 Percent

Flashing - EZV-A
This is for interlocking tiles up to a 45mm profile.
It is ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
Universal flashing, which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
Applied to individual windows in the slope of the roof
Used as flashing for windows used in the group for V depths in horizontal, vertical, and block
Roofs with pitches from 15Deg to 90Deg for depths V
Depths in the roof construction V - (0cm)

Flashing- EZJ-A
Recessed Style
For interlocking tiles up to 45mm profile
It is ideal for fitting windows with profiled roof coverings such as roof tiles and metal sheeting.
Universal flashing, which can be applied not only to corrugated coverings and roof coverings with a profile depth of up to 45mm
Applied to individual windows in the slope of the roof
Used as flashing for windows used in combinations for depth J in horizontal
Roofs with pitches from 20Deg to 90Deg for depths J
Depths in the roof construction J - (–3cm)

Flashing - ELV
For non-interlocking slate up to 10mm thick.
It is ideal for fitting windows within slated roof coverings up to 10mm thickness.
Applied as standard to individual windows in the roof's slope.
Window units combined for V depth in vertical, horizontal and block groups
Roofs with pitches from 15Deg to 90Deg for depths V
Depths in the roof construction V - (0cm)

Flashing - ELJ
Recessed Style
For non-interlocking slate up to 10mm thick.
ideal for fitting windows within slated roof coverings up to 10mm thickness
Applied as standard to individual windows in the slope of the roof
window units combined for J depth horizontal only
Roofs with pitches from 20Deg to 90Deg for depths J
Depths in the roof construction J - (–3cm)

Flashing - EPV
For plain tiles up to 16mm thick.
It is ideal for a fit between windows and heavy-tiled roof coverings such as plain tiles and shingles.
Applied to roof coverings of up to 24 – 32 mm thickness.
For individual windows on the slope of the roof.
Window units may be combined in horizontal, vertical and block groups.
Roofs with pitches from 25Deg to 90Deg for depths V
Depths in the roof construction V - (0cm).

Flashing - EPJ
Recessed Style
For plain tiles up to 16mm thick.
It is ideal for a fit between windows and heavy-tiled roof coverings such as plain tiles and shingles.
Applied to roof coverings of up to 24 – 32 mm thickness.
For individual windows on the slope of the roof.
Window units may be combined in horizontal, vertical and block groups.
Roofs with pitches from 30Deg to 90Deg for depths V
Depths in the roof construction J - (-3cm).

Flashing - EHN-A
This is for interlocking tiles up to a 90mm profile.
Suitable for the water-tight connection of roof windows with roof coverings such as roof tiles and high-profile metal sheeting
It is applied to roof coverings with a profile depth of up to 90 mm and is used to individual windows in the roof's slope.
Used as module flashing for windows installed in horizontal and vertical combinations or block groups.
The flashing is available for one installation depth, allowing installation of windows at a level N (+3)
It can be used on roofs with pitches between 15Deg and 90Deg

ELV-T Thermo universal
For non-interlocking slate up to 10mm thick.
It is ideal for fitting windows within slated roof coverings up to 10mm thickness.
Applied as standard to individual windows in the roof's slope.
Window units combined for V depth in vertical, horizontal and block groups
Roofs with pitches from 15Deg to 90Deg for depths V
Depths in the roof construction V - (0cm)
Additional thermal insulation

EHV-AT Thermo
This is for interlocking tiles up to a 90mm profile.
The ideal solution which guarantees a tight and warm connection of the window with the roof covering
Insulation of the window above the level of battens.
Glued flexible insulating material which adheres tightly to the window frame constituting a thermo-insulated frame
Enhances U value of the window up to 15 Percent
Used with all types of roof coverings up to 90 mm profile depth
Applied as standard to individual windows in the roof's slope. The flashing may also be used as module Roofs with pitches from 15Deg to 90Deg for depths V
Depths in the roof construction V - (0cm)
Additional insulation

Flashing - EZA
Lifts windows out of the roofline by 10 degrees.
Flashing for changing window installation angle
Flashing is ideal for a flush fit of the window with low-pitch roof coverings of 10Deg or more
Enables the installation angle to be raised by an additional 10Deg
Used in mansard roofs, in extensions and adaptations of low-pitched attics to extend space in the attic.
Commonly used to install with single windows in roof slopes
The flashing is also used in modules for the horizontal joining of windows
Profiled covering up to 45mm for use with roof tiles and profiled sheeting
Used on roofs with pitches between 10Deg and 75Deg

Flashing -ESA
Lifts windows out of the roofline by 10 degrees.
Flashing for changing window installation angle
Flashing is ideal for a flush fit of the window with low-pitch roof coverings of 10Deg or more
Enables the installation angle to be raised by an additional 10Deg
Used in mansard roofs, in extensions and adaptations of low-pitched attics to extend space in the attic.
Commonly used to install with single windows in roof slopes
The flashing is also used in modules for the horizontal joining of windows
Flat covering with a profile depth of 10 mm for use with slates and similarly flat roof coverings
Used on roofs with pitches between 10Deg and 75Deg

Flashing -EHA
Lifts windows out of the roofline by 10 degrees.
Flashing for changing window installation angle
Flashing is ideal for a flush fit of the window with low-pitch roof coverings of 10Deg or more
Enables the installation angle to be raised by an additional 10Deg
Used in mansard roofs, in extensions and adaptations of low-pitched attics to extend space in the attic.
Commonly used to install with single windows in roof slopes
The flashing is also used in modules for the horizontal joining of windows
Profiled covering up to 90mm for use with roof tiles, corrugated and deep profiled sheeting
Used on roofs with pitches between 10Deg and 75Deg
