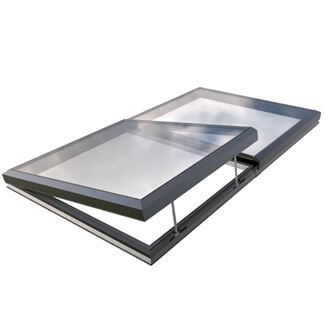

Brett Martin Fixed And Opening Glass Link Rooflight

Opening: Powered
Powered with wall-switch (concealed chain actuator)
Minimalist appearance including flush powered opening modules with hidden actuators and cables, meaning fixed and opening modules appear identical
Fast and simple installation thanks to large modules and no additional flashings - modules simply lap together and side-fix
Guaranteed weather tightness with factory-glazed modules requiring no on-site glazing sealant
Suitable for pitches of 2 degrees - 35 degrees providing a versatile solution for a variety of applications
Elegant aluminium framework powder coated to fashionable anthracite grey RAL 7016 outside and white RAL 9010 inside
Highly thermally efficient with thermally broken frame and units glazed with Low-E insulated double-glazed glass units
Safety of those below and above the roof light assured thanks to a laminated inner pane and the product achieving non-fragility to CWCT TN-67 (for class 2 roofs) and Class B non-fragile to ACR[M]001 when new and fully installed to Brett Martin installation guidelines
Highly secured by design opens in new window accreditation
10-year commercial product warranty
BBA approved

£2507.42^Each

Design Features:
Premium quality factory-assembled glass roof light units
Modules are constructed from structurally glazed double-glazed units in a powder-coated, fully thermally broken aluminium frame
All modules are flush, providing a seamless aesthetic
Components of powered opening roof lights are completely concealed for an unobstructed light well
Dual colour powder coated as standard, fully thermally broken aluminium framework
Spans of up to 3800mm are possible with individual modules of up to 3800x1750mm allowing for large uninterrupted
daylight areas
Fixed Brett Martin Glass Link roof lights achieve Secured by Design accreditation
Sleek and contemporary design
Ideal for both residential and commercial applications

Product Options Summary:
Multipane Modules
Large modules can be glazed with multiple panes of glass to avoid the need for heavier and more expensive glass specifications

Glazing Specification:
- Standard specification
- 6mm toughened outer - 16mm Argon spacer
- 9.5mm laminate with 1.5mm PVB interlayer (for very large sizes inner pane increases to 11.5mm)
- CWCT TN-67 for class 2 roofs
- ACR[M]001 Class B non-fragile
